- Sorry, this product cannot be purchased.

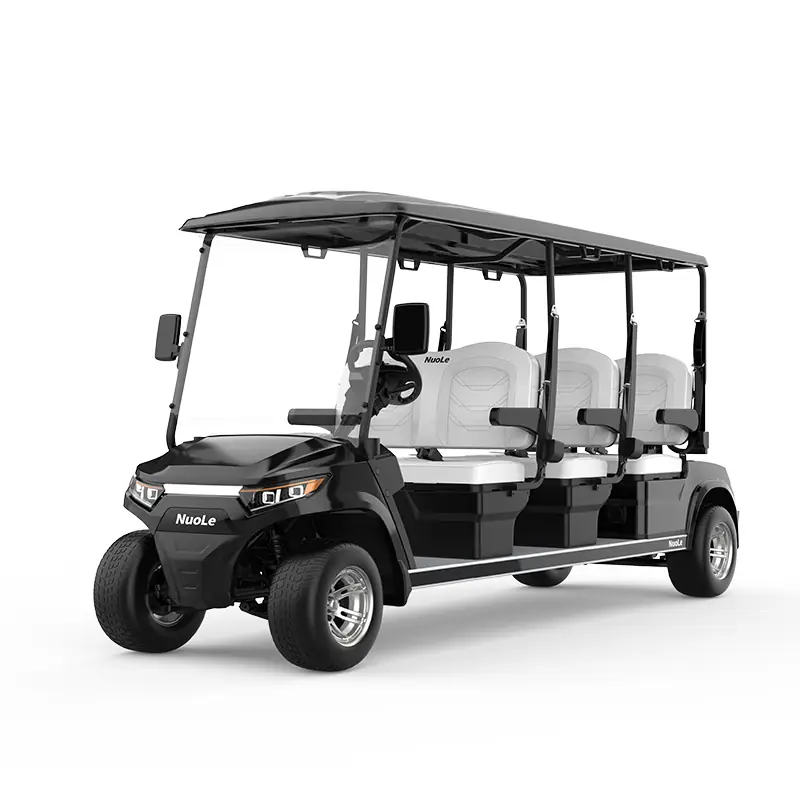

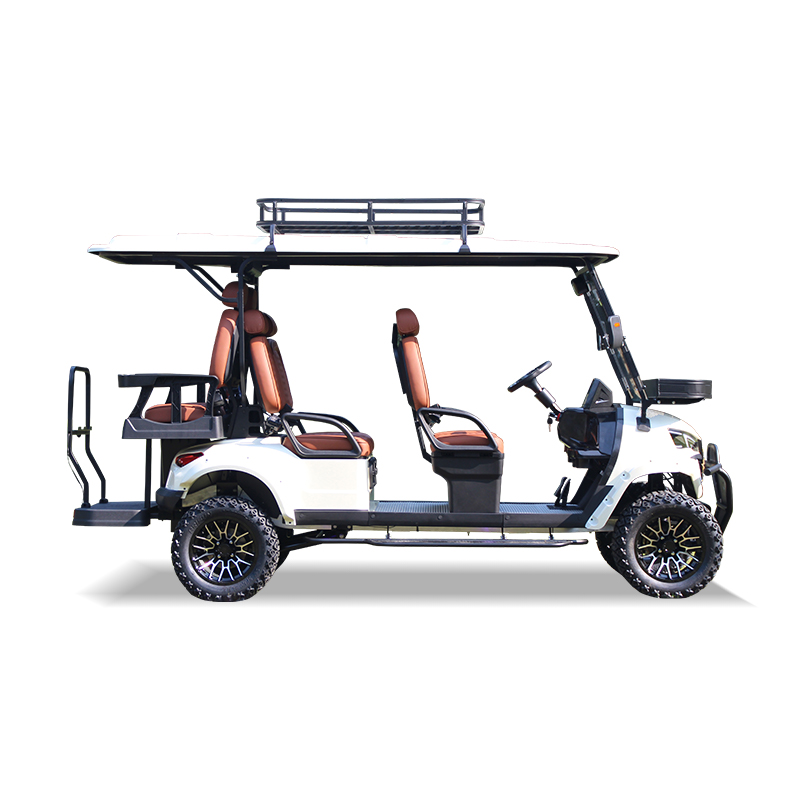

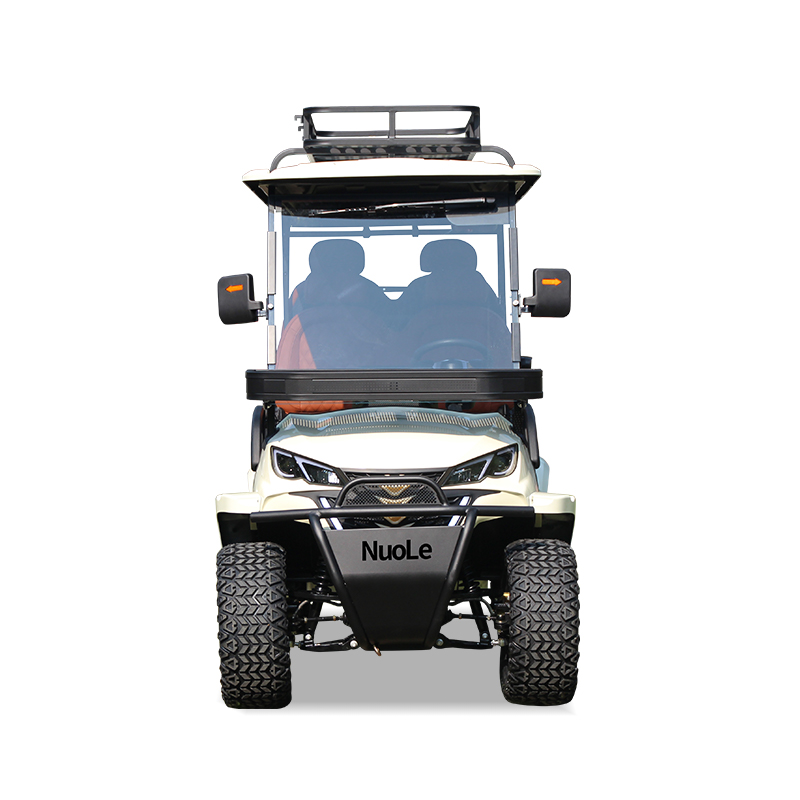

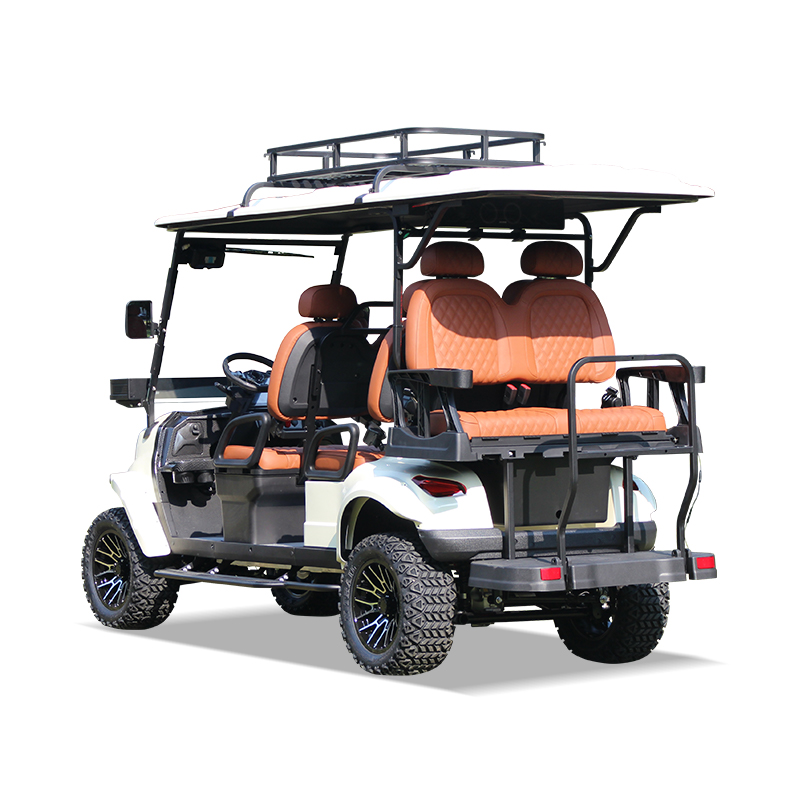

NL-JA4+2 6 Seater Off-Road Electric Golf Cart with Bumper Custom Body Color Seat Color Lifted Golf Carts
Category Golf cart
- Seats:6 Driving Mileage:>80
- Speed:25 Power System: 48V/5KW AC
- • Model:NL-JA4+2
- • Strong powerful 48V/5KW AC Motor
- • Macpherson Independent Suspension
- • Made with High Strength Carbon Steel Integral Frame
- • Accept to do OEM and ODM Order of Best All Electric Cars
- • Hydraulic Double Pipe Brake with Front & Rear Drum Wheel Brake
When and wherever you need 6 Seater Electric Golf Cart, welcome to send enquiry to join our team, or learn more about our vehicles.
- Electric-Golf-cart-series-Sichuan-Nuole-Electric-Technology-Co.-Ltd-9ry9hm.pdf Download
- Electric-Golf-cart-series-Sichuan-Nuole-Electric-Technology-Co.-Ltd-9ry9hm.pdf Download
Product Descriptive
Product Details
Product Parts
Product Descriptive
Product Details
Key Components | Battery | 6PCSx8V150Ah Lead acid Battery |
48V105AH/150AH Lithium Battery | ||
Motor | 5KW AC motor | |
Controller | FJ 450A | |
Performance | Minimum turning radius (m) | 4.5 |
Climbing ability | 30% | |
Max. movement after brake at speed of 25km/h | ≤5.5m | |
Max. loading weight | 360kgs | |
Net weight | 640kgs | |
Dimensions | Overall dimensions (mm) | 3685*1230*1905 |
Standard ground clearance (mm) | 120 | |
Lifted ground clearance (mm) | 200 | |
Wheelbase (mm) | 2470 | |
Front wheel tread (mm) | 890 | |
Rear wheel tread (mm) | 980 | |
Container loading Qty | Container loading Qty/20FT | 6 |
Container loading Qty/40HQ | 17 |
Product Parts
Optional Accessories | |||
Lead acid maintenance free battery,6×8V,150Ah | 2 Seats Three-point safety belt | ||
Lithium battery,48V105Ah | 2+2 Seats& 4Seats Three-point safety belt | ||
Lithium battery,48V150Ah | 4+2 SeatsThree-point safety belt | ||
Portable charger for 110V to 220V,48V | 2 Seats&2+2 Seats Integral plastic rain curtain | ||
On board charger for 110V to 220V,48V | 4 Seats&4+2 Seats Integral plastic rain curtain | ||
Double A-arm Macpherson independent suspension | 2 Seats Pull out sun blind | ||
Metal front bumper | 2+2 Seats& 4Seats Pull out sun blind | ||
Off road tire,23×10-14,aluminum rim(two patterns available) | 4+2 Seats Pull out sun blind | ||
2 Seats Seats with two colors | 2 Seats&2+2 Seats Customize the color of the ceiling | ||
2+2 Seats& 4Seats Seats with two colors | 4 Seats& 4+2 Seats Customize the color of the ceiling | ||
4+2 Seats Seats with two colors | 2 Seats&2+2 Seats Customize the color of the body | ||
2 Seats Luxury leather seats(Beige/black optional) | 4 Seats& 4+2 Seats Customize the color of the body | ||
2+2 Seats& 4Seats Luxury leather seats(Beige/black optional) | Touch screen combination instrument | ||
4+2 Seats Luxury leather seats(Beige/black optional) |
GET A QUOTE
