NL-JZ2+2.G

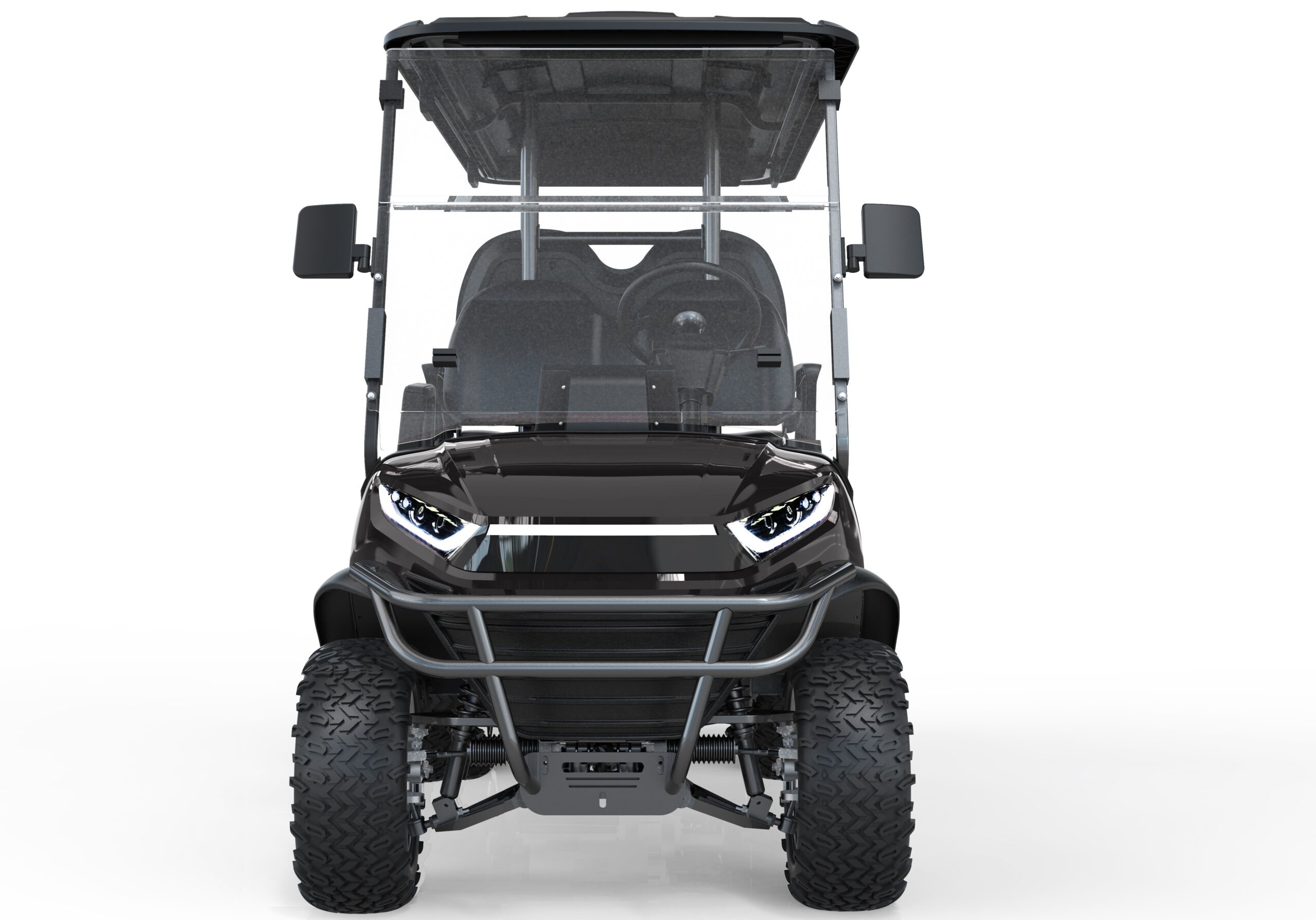

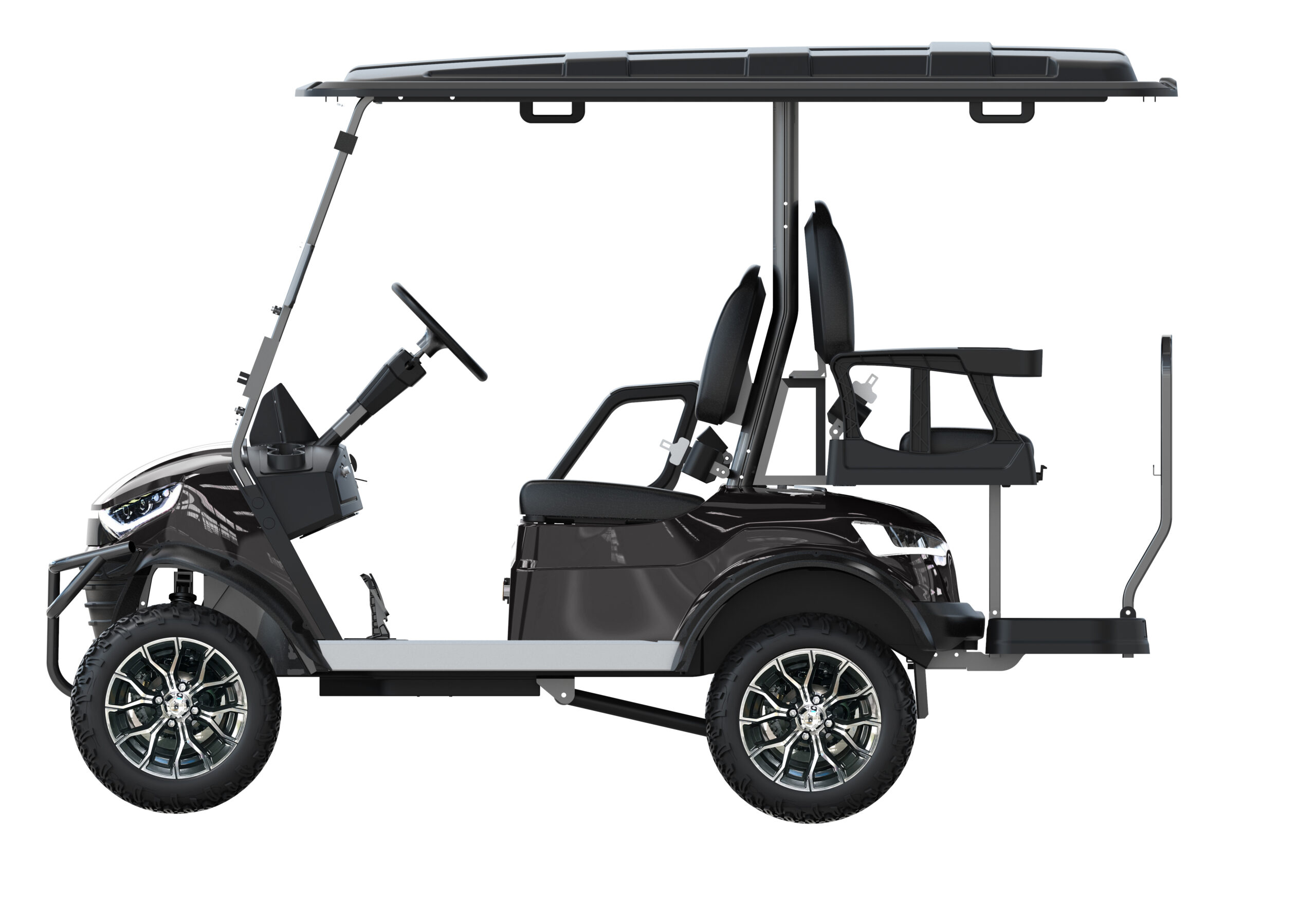

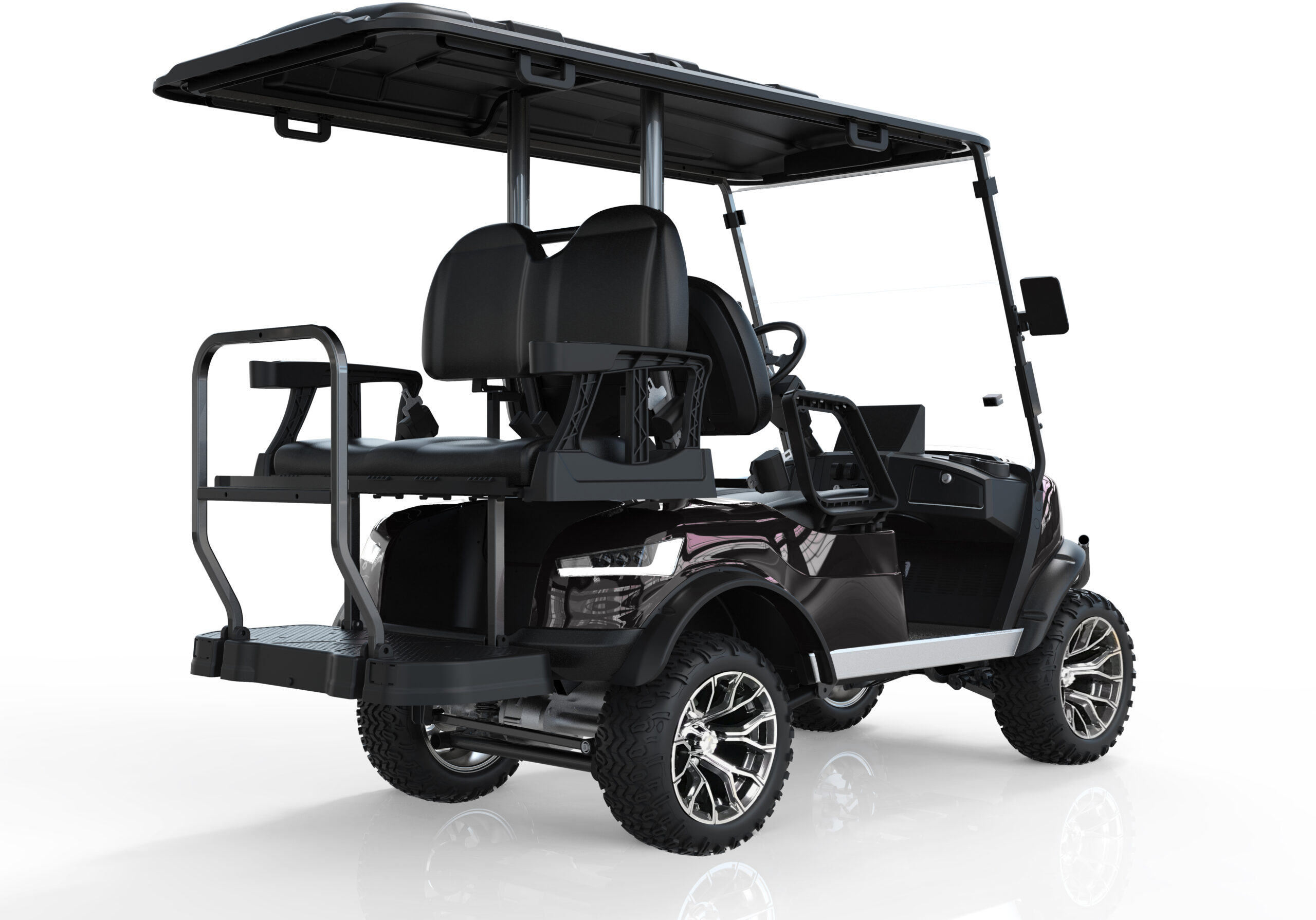

Experience excellence with our NL-JZ22-G series 4-passenger golf cart. Boasting a powerful 48V/4KW AC Motor, this 4 seater electric car features Macpherson Independent Suspension and a resilient High Strength Carbon Steel Frame. Navigate with confidence using the Metal Front Bumper and double Arm Suspension on this hunting golf cart, and stay informed on the LCD Screen. Elevate your golf cart offering with the perfect blend of power and sophistication on the course.
- Seats：4 Driving Mileage：>80
- Speed：40 Power System： 48V/4KW AC
- • Model:NL-JZ2+2.G
- • Strong powerful 48V/4KW AC Motor
- • Macpherson Independent Suspension
- • Made with High Strength Carbon Steel Integral Frame
- • Accept to do OEM and ODM Order of Best All Electric Cars
- • Hydraulic Double Pipe Brake with Front & Rear Drum Wheel Brake
When and wherever you need 4 seater electric golf cart, welcome to send enquiry to join our team, or learn more about our vehicles.
- Electric-Golf-cart-series-Sichuan-Nuole-Electric-Technology-Co.-Ltd-9ry9hm.pdf Download
- Electric-Golf-cart-series-Sichuan-Nuole-Electric-Technology-Co.-Ltd-9ry9hm.pdf Download
Product Descriptive
Product Details
Product Parts
Product Descriptive
 |
METAL FRONT BUMPER NL-JZ+2.G series 4 seater electric car features a high-strength seat bumper that protects the vehicle while providing this hunting golf cart a sleek-looking design. |
| TIRE AND RIM 10/12/14 inch tires for cengo golf carts with aluminum hub in different shapes and different tread patterns. Cengo golf cart tire has advantages of low ground pressure, great flexibility, energy saving, strong grip and stable performance. |  |
 |
DOUBLE A ARM SUSPENSION SYSTEM Widely used in road vehicles, the Nuole NL-JZ+2.G series 4-passenger golf cart uses a double A-arm suspension system because it can provide greater lateral rigidity, excellent anti-roll ability, good grip performance, and a clear sense of road. |
| CHASIS AND THE VEHICLE FLOOR Big tires and highly configured vehicle base frame structure allows most suitable ground clearance which make more smooth and stable performance. Aluminium foor for the new design off road golf carts. |  |
 |
WATER CUP HOLDERS Considerate water cup holders on operating platform. |
| PEDAL Aluminium pedals with “STOP” and “GO”, easy for driving. |  |
 |
STEERING WHEEL Water transfer printing and good touch steering wheel with alu frame makes more comfortable driving experience. |
| LCD SCREEN NL-JZ+2.G series electric hunting golf cart featured a wide LCD touch screen with intelligent functions, allowing the user to connect their phone, music, and radio through Bluetooth connection. Customization of special functions is also available. |  |
Product Details
| Key Components | Battery | 6PCSx8V150Ah Lead acid Battery |
| 48V105AH/150AH Lithium Battery | ||
| Motor | 4KW AC motor | |
| Controller | FJ 350A | |
| Performance | Minimum turning radius (m) | 3.8 |
| Climbing ability | 25% | |
| Max. movement after brake at speed of 25km/h | ≤5m | |
| Max. loading weight | 360kgs | |
| Net weight | 580kgs | |
| Dimensions | Overall dimensions (mm) | 2960*1310*2074 |
| Standard ground clearance (mm) | 120 | |
| Lifted ground clearance (mm) | 157 | |
| Wheelbase (mm) | 1685 | |
| Front wheel tread (mm) | 970 | |
| Rear wheel tread (mm) | 1000 | |
| Container loading Qty | Container loading Qty/20FT | 6 |
| Container loading Qty/40HQ | 18 |
 |
 |
 |
 |
 |
 |
Product Parts
| Optional Accessories | |
| Lead acid maintenance free battery, 6x8V, 150Ah | 2 Seats Three-point safety belt |
| Lithium battery,48V105Ah | 2+2 Seats& 4Seats Three-point safety belt |
| Lithium battery,48V150Ah | 4+2 SeatsThree-point safety belt |
| Portable charger for 110V to 220V,48V | 2 Seats&2+2 Seats Integral plastic rain curtain |
| On board charger for 110V to 220V,48V | 4 Seats&4+2 Seats Integral plastic rain curtain |
| Double A-arm Macpherson independent suspension | 2 Seats Pull out sun blind |
| Metal front bumper | 2+2 Seats& 4Seats Pull out sun blind |
| Off road tire,23×10-14,aluminum rim(two patterns available) | 4+2 Seats Pull out sun blind |
| 2 Seats Seats with two colors | 2 Seats&2+2 Seats Customize the color of the ceiling |
| 2+2 Seats& 4Seats Seats with two colors | 4 Seats& 4+2 Seats Customize the color of the ceiling |
| 4+2 Seats Seats with two colors | 2 Seats&2+2 Seats Customize the color of the body |
| 2 Seats Luxury leather seats(Beige/black optional) | 4 Seats& 4+2 Seats Customize the color of the body |
| 2+2 Seats& 4Seats Luxury leather seats(Beige/black optional) | Touch screen combination instrument |
| 4+2 Seats Luxury leather seats(Beige/black optional) | |
